UNUM Genset video tutorials

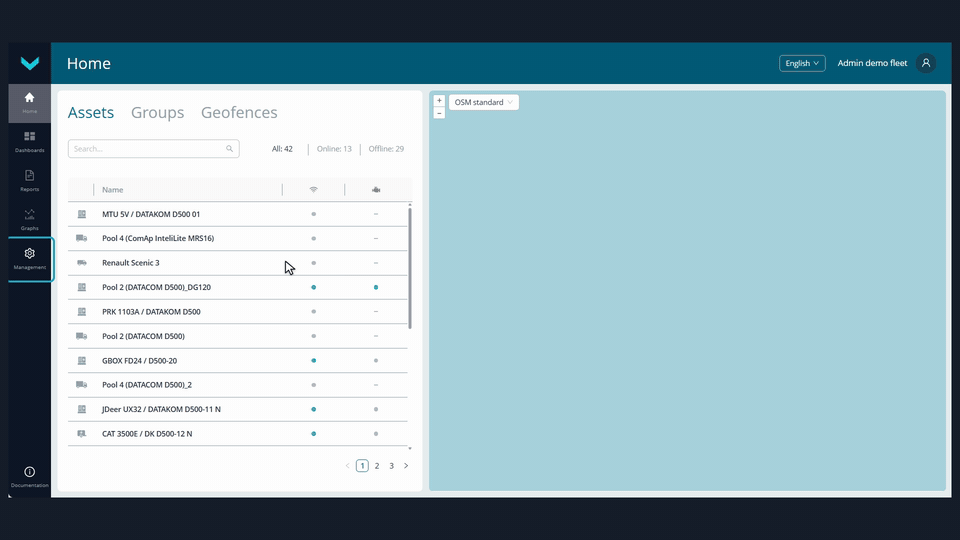

1. Open Management in the left menu.
2. Click the Assets tile.
3. Click New Asset: the Asset Card of a new Asset opens.

▶ Watch in the video from 0:12

Learn more: Guide 5.5.1. Creating an Asset

Report an inaccuracy

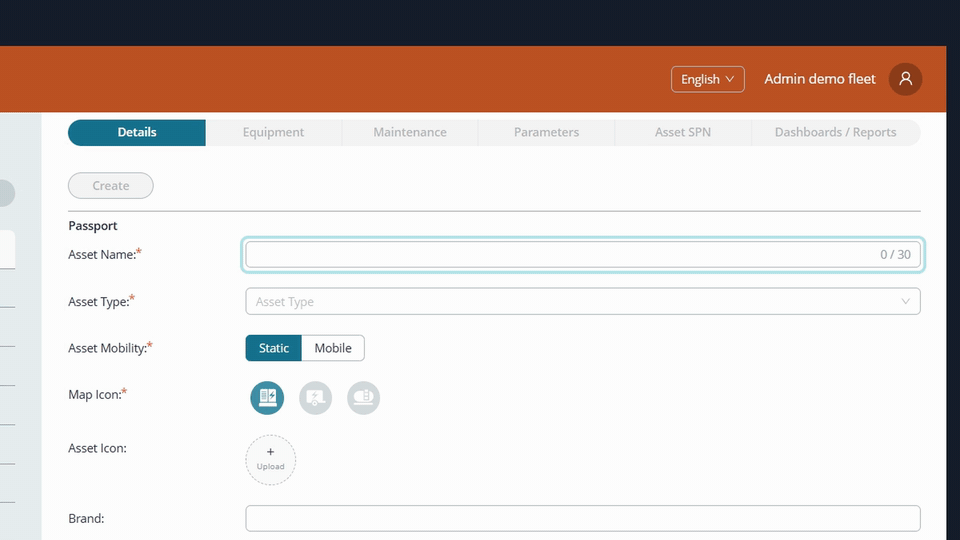

1. Enter the Asset name.
2. Select the Asset type.
3. Set Asset Mobility: Static or Mobile.
4. Fill in the Asset Passport and the comment if needed.
5. Click Create. Save later changes with the Update button.

▶ Watch in the video from 0:28

Learn more: Guide 5.5.1. Creating an Asset

Report an inaccuracy

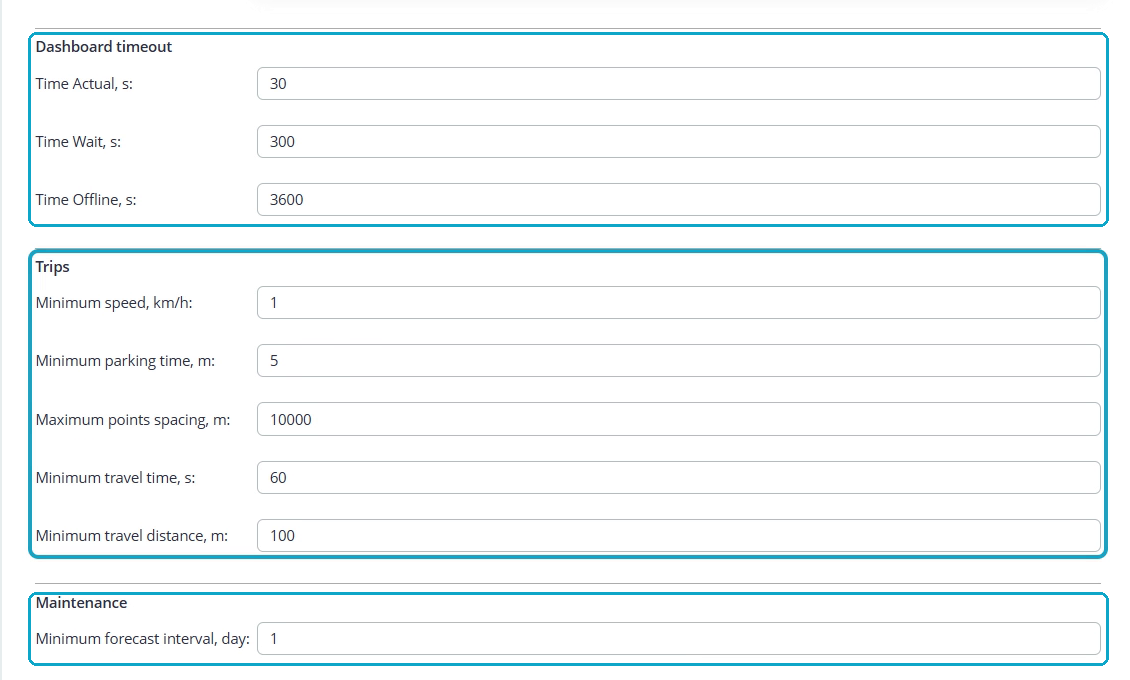

1. In the Dashboard timeout section, change Time Actual, Time Wait, and Time Offline if needed.
2. In the Trips section, change the Trip settings if needed.
3. In the Maintenance section, set the minimum forecast interval in days.

▶ Watch in the video from 1:19

Learn more: Guide 5.5.2. Editing an Asset

Report an inaccuracy

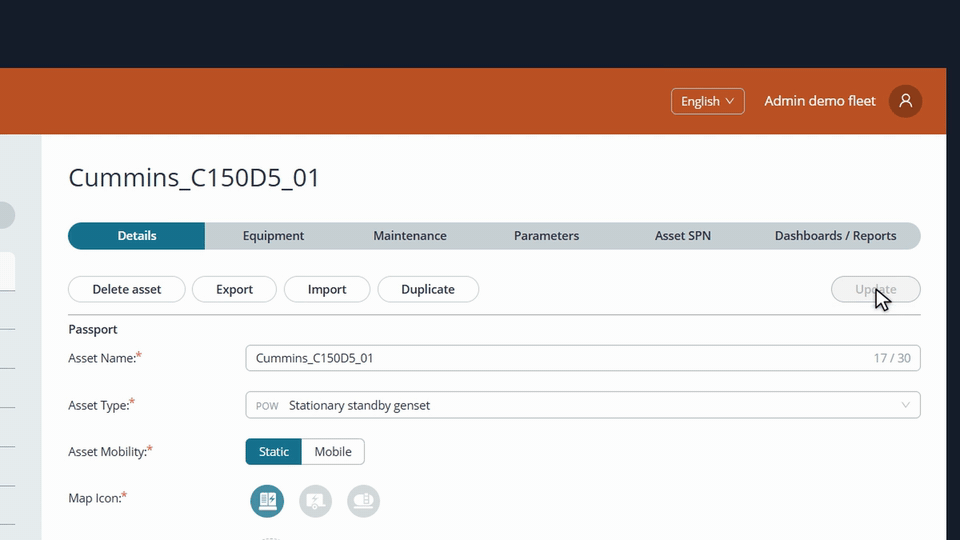

1. To save the Asset to a file, click Export.
2. To load settings from such a file, click Import.
3. To make a copy, click Duplicate.

▶ Watch in the video from 1:52

Learn more: Guide 5.5.1. Creating an Asset

Report an inaccuracy

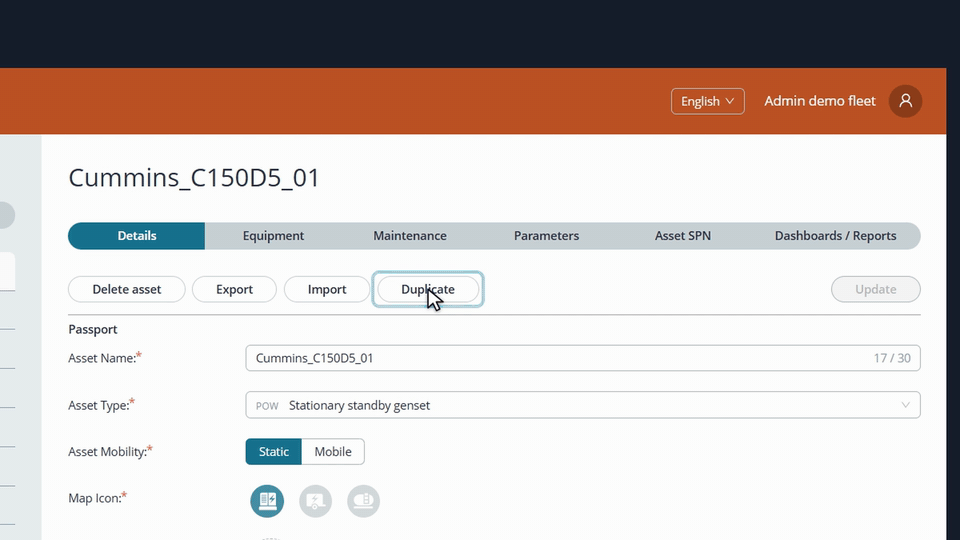

1. Save the Asset to a file with the Export button.
2. Click Delete asset.

▶ Watch in the video from 2:02

Learn more: Guide 5.5.3. Deleting an Asset

Report an inaccuracy

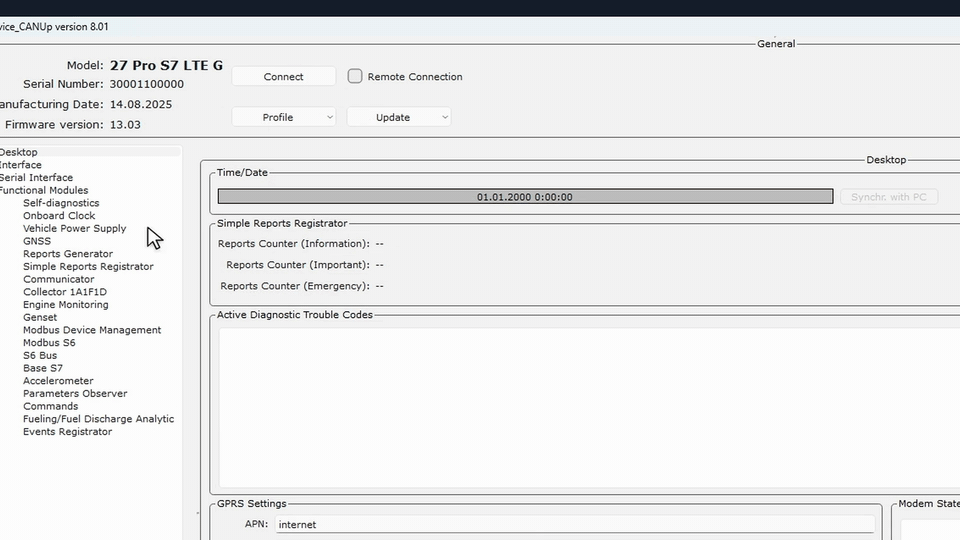

1. Open the Communicator section.
2. In the APN field, enter the access point name of your mobile operator.
3. In Extended AVL Settings, select UNUM Genset in the AVL Server field.

▶ Watch in the video from 0:52

Learn more: CANUp27 and UNUM. Quick Start Guide (v.2.0)

Report an inaccuracy

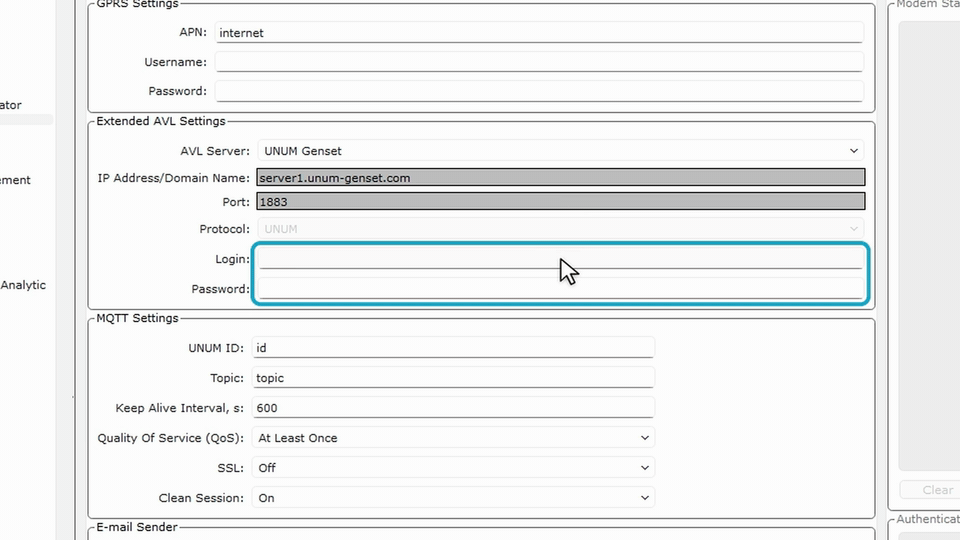

1. Copy the Login and Password from the Asset Card.
2. Paste them into the Login and Password fields.
3. Copy the UNUM ID and Topic to the MQTT Settings section.

▶ Watch in the video from 1:15

Learn more: CANUp27 and UNUM. Quick Start Guide (v.2.0) · Guide 5.5.1. Creating an Asset

Report an inaccuracy

1. Find the Authentication AVL Server section.
2. Check that the AVL Authentication Status is Performed.

▶ Watch in the video from 1:37

Learn more: CANUp27 and UNUM. Quick Start Guide (v.2.0)

Report an inaccuracy

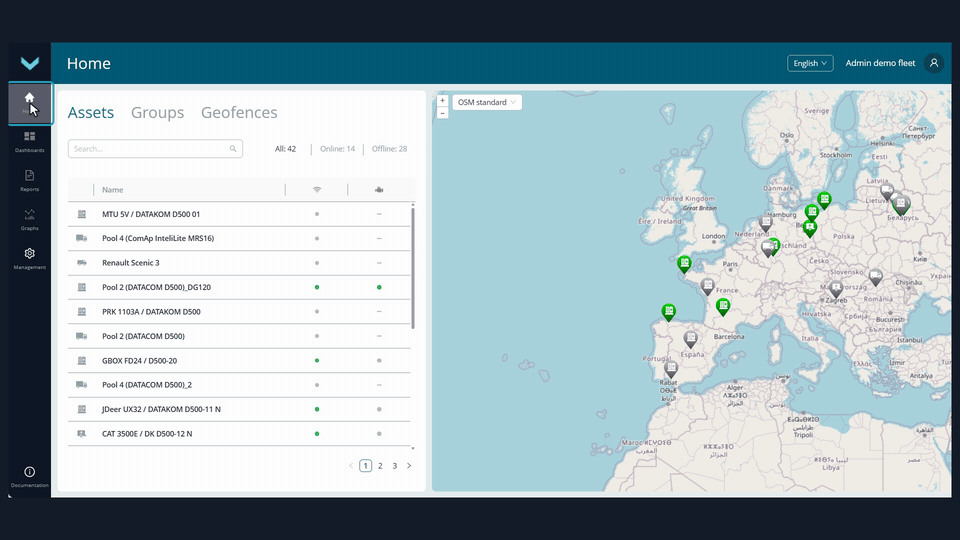

1. Open the UNUM Genset Home page.
2. Find the Asset in the list: a connected Asset shows a lit connection icon.
3. Click the Asset marker on the Map.

▶ Watch in the video from 1:47

Learn more: Guide 5.2. Interface of Main monitoring window

Report an inaccuracy

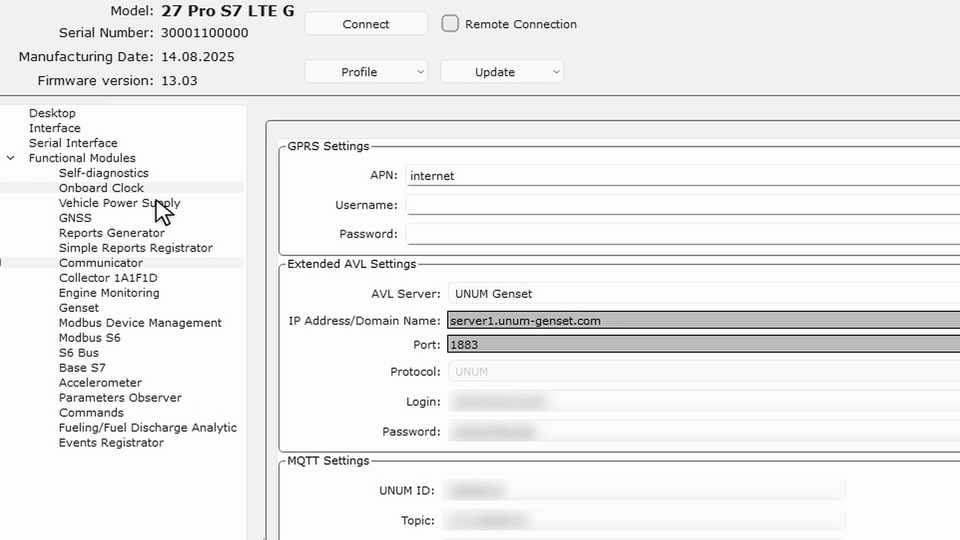

1. In Service CANUp, check the external power in the Vehicle Power Supply section.
2. Check that the modem is connected to the AVL server.
3. Check the SIM card and the signal level.
4. If the Asset is missing from the Map, check the navigation report in Reports Generator.

▶ Watch in the video from 2:01

Learn more: CANUp27 and UNUM. Quick Start Guide (v.2.0) · CANUp 27 operation manual (v 9.0)

Report an inaccuracy

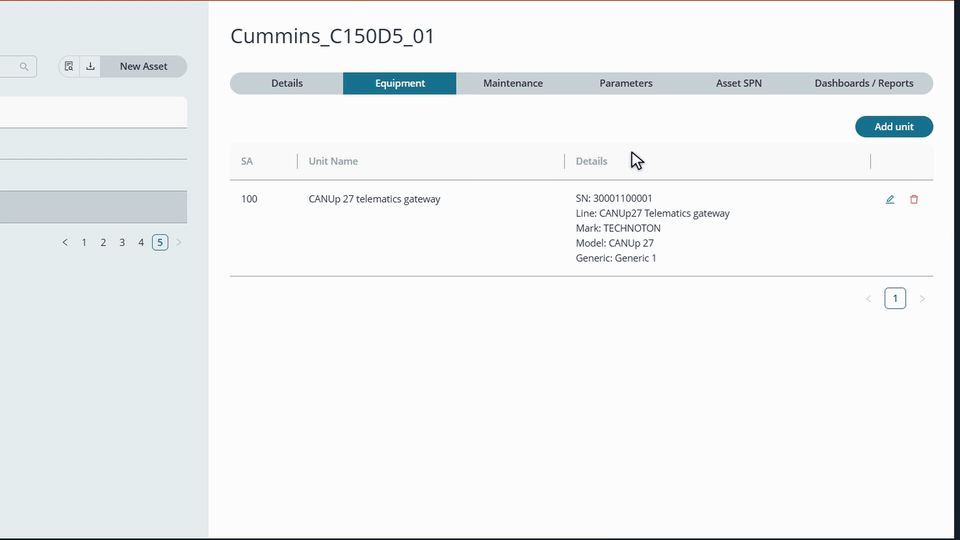

1. Click Add unit.
2. Enter the SA network address of the Unit from Annex A, for example 134 for the control panel.
3. Fill in the Unit Name and Serial number.
4. Select the model in the Unit characters field.
5. Click Add.

▶ Watch in the video from 1:04

Learn more: Guide 5.5.2. Editing an Asset · Guide, Annex A. Recommended Unit Network Addresses

Report an inaccuracy

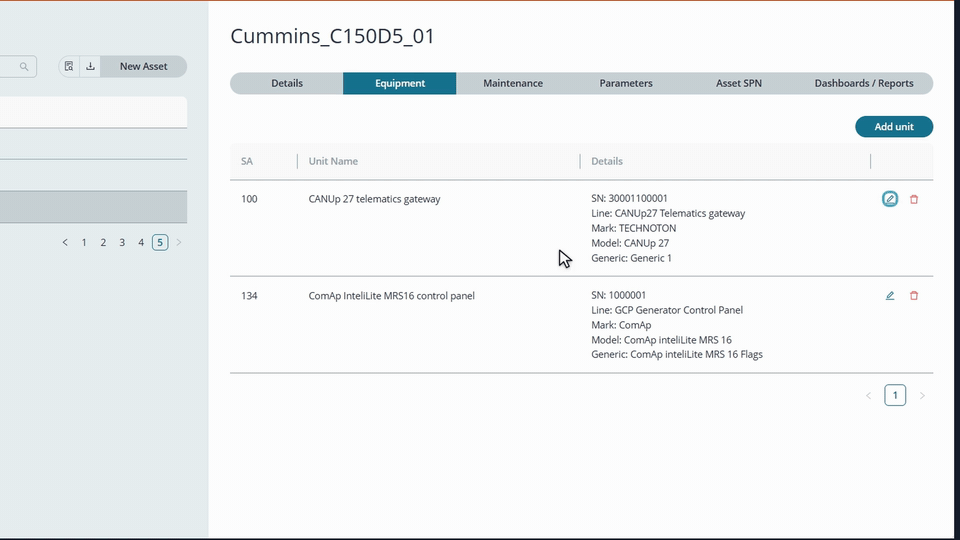

1. To edit the Unit passport, click the pencil icon in its row.
2. To delete the record, click the trash bin icon.

▶ Watch in the video from 1:40

Learn more: Guide 5.5.2. Editing an Asset

Report an inaccuracy

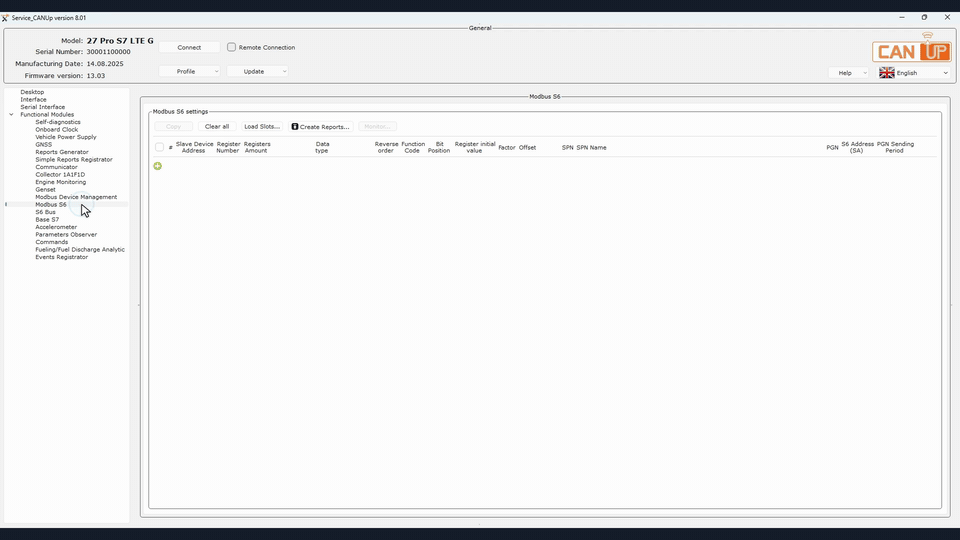

1. In Service CANUp, open the Modbus S6 Functional Module.
2. Select a ready-made panel profile.
3. If there is no profile, enter the parameters manually from the panel register map.

▶ Watch in the video from 1:59

Learn more: CANUp 27 operation manual (v 9.0) · CANUp 27 catalogue of functional modules (v. 3.0)

Report an inaccuracy

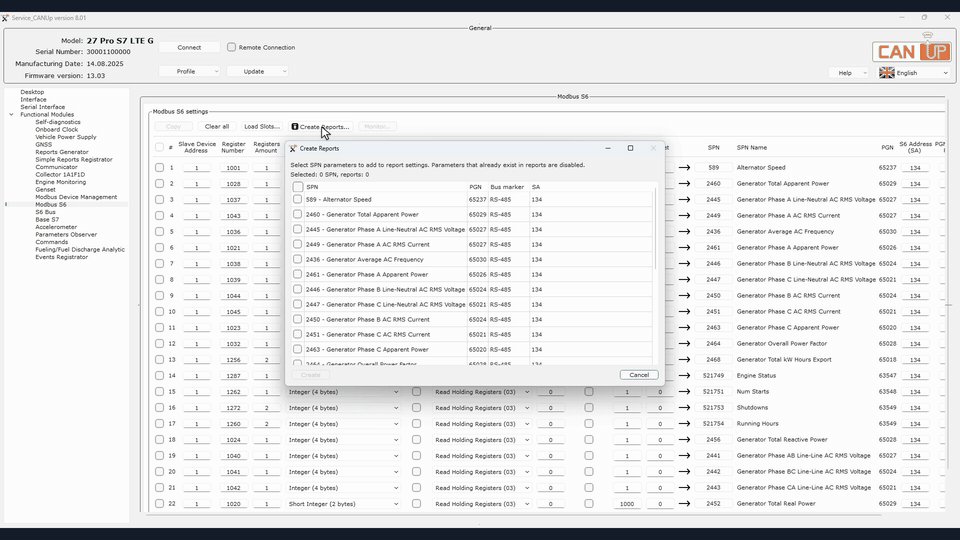

1. Click Create Reports.
2. Tick the Parameters you need in reports.
3. Click Create.
4. Save the Profile to the CANUp Gateway: Profile, Save to Unit.

▶ Watch in the video from 2:30

Learn more: CANUp 27 operation manual (v 9.0)

Report an inaccuracy

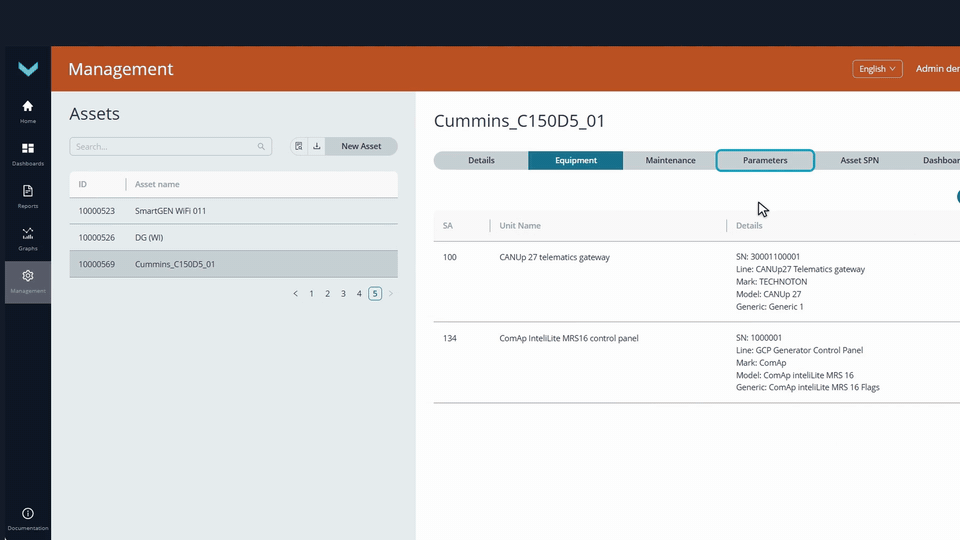

1. Open the Parameters tab and click Add SPN.
2. Enter the SA and SPN of the Parameter.
3. Set the colored segments of the scale.
4. Click Add.

▶ Watch in the video from 2:55

Learn more: Guide 5.5.2. Editing an Asset

Report an inaccuracy

1. Open the Maintenance tab and click Add node.
2. Enter the Node name, for example Engine, and click Save.
3. Open the Node and click Add spn.
4. Enter the criterion name and select a Resource Counter.
5. Set the Warning and Resource thresholds and click Save.

▶ Watch in the video from 3:44

Learn more: Guide 5.5.2. Editing an Asset

Report an inaccuracy

1. Open Management and the Subscriptions tile.
2. Find the Asset row in the Subscriptions table.
3. Click the pencil icon: the list of Tasks opens with the Task Class and the rate in UC.

▶ Watch in the video from 0:37

Learn more: Guide 5.8.1. Subscribing / unsubscribing to Tasks

Report an inaccuracy

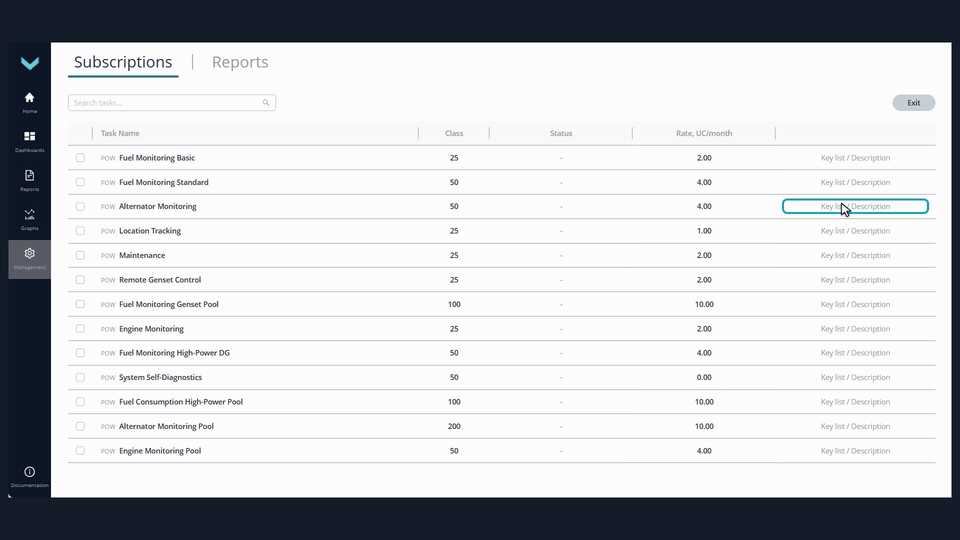

1. For the Task you need, click Key list / Description.
2. View the preconfigured and free Keys: the SA network address and the SPN number.

▶ Watch in the video from 1:40

Learn more: Guide 5.8.1. Subscribing / unsubscribing to Tasks · Task catalogue. Telematics service UNUM GENSET

Report an inaccuracy

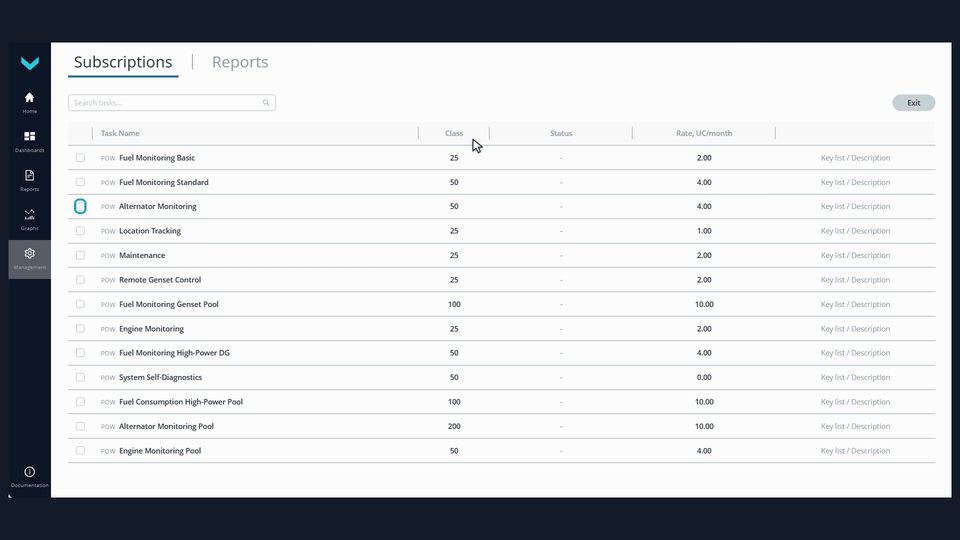

1. Tick the box next to the Task.
2. Agree to the Subscription terms.
3. Click Subscribe.

▶ Watch in the video from 2:46

Learn more: Guide 5.8.1. Subscribing / unsubscribing to Tasks

Report an inaccuracy

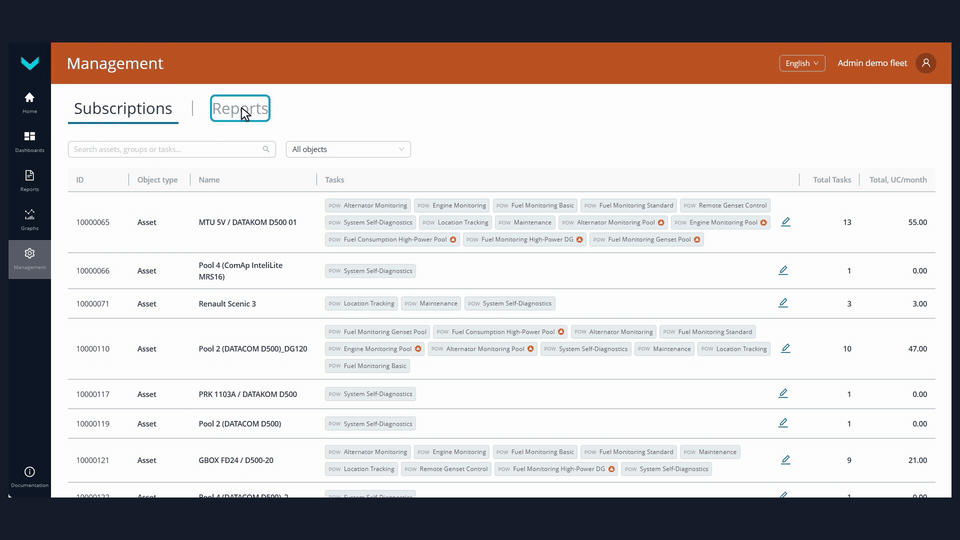

1. In the Subscriptions tile, open the Reports tab.
2. Select the months in the From and To fields.
3. Click Create Report.
4. Open the Asset details in its row.

▶ Watch in the video from 3:15

Learn more: Guide 5.8.2. Generating billing reports

Report an inaccuracy

1. Open the Asset Card: Management, the Assets tile.
2. Open the Dashboards / Reports tab.
3. Uncheck the unneeded Dashboard Template.
4. Click Update.

▶ Watch in the video from 4:00

Learn more: Guide 5.5.2. Editing an Asset

Report an inaccuracy

1. Open Management and the Users tile.
2. Click New User.
3. Enter the name, email, login, and password.
4. Select the Role: Fleet Operator or Viewer.
5. Click Create.
6. On the Asset access tab, tick the Assets and Groups and click Save.

▶ Watch in the video from 0:30

Learn more: Guide 5.4.1. Creating an Operator account · Guide 5.4.2. Editing an Operator account

Report an inaccuracy

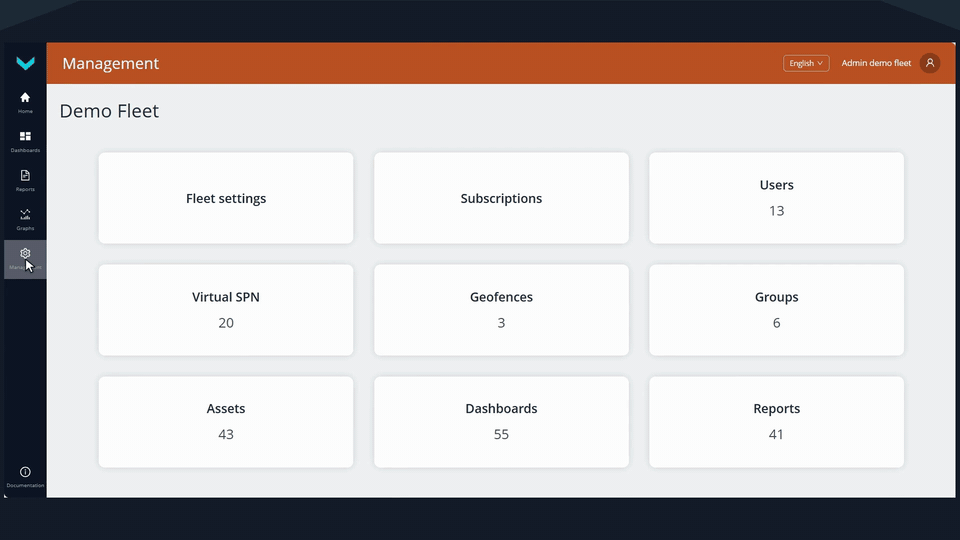

1. Open Management and the Dashboards tile.
2. Find the Card of the Task you need: Templates marked with an asterisk are standard.
3. Click the copy icon next to the Template: a copy marked duplicate appears.

▶ Watch in the video from 0:56

Learn more: Guide 5.9.1. Creation of a Dashboard Template

Report an inaccuracy

1. Open the copy of the Dashboard Template.
2. Enter a name: Latin letters, digits, underscores, and round brackets.
3. In the For assets field, select the Assets.
4. Drag Widgets with the mouse and resize them by the bottom right corner.
5. The pencil icon opens the Widget settings, and the trash bin icon deletes the Widget.

▶ Watch in the video from 1:26

Learn more: Guide 5.9.2. Editing a Dashboard Template

Report an inaccuracy

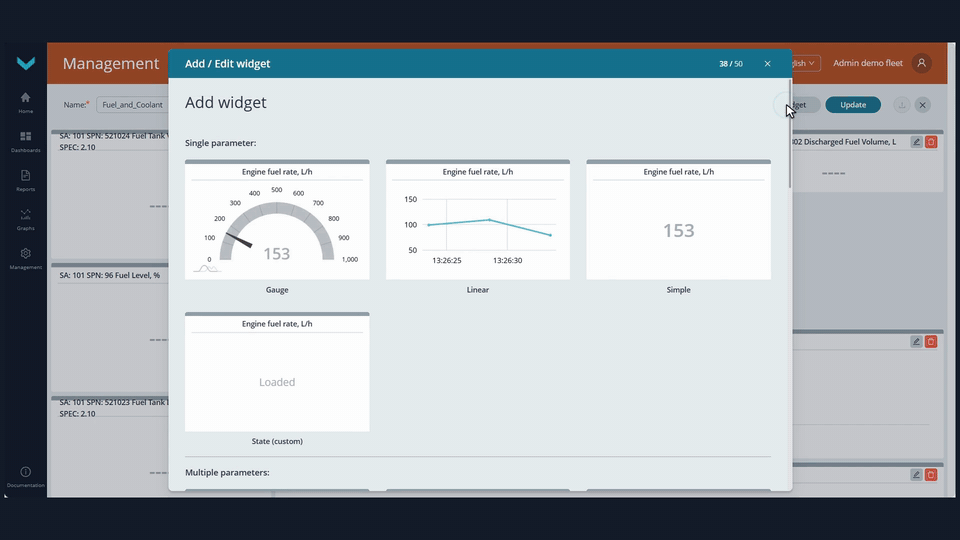

1. In the Template window, click Add widget and choose a type, for example Gauge.
2. Select a Key on the Existing tab, or fill a free Key on the Custom New tab: enter the SA and SPN.
3. Click Create: the Widget appears in the Template.
4. Save the Template with the Update button.

▶ Watch in the video from 1:50

Learn more: Guide 5.9.1. Creation of a Dashboard Template · Task catalogue. Telematics service UNUM GENSET

Report an inaccuracy

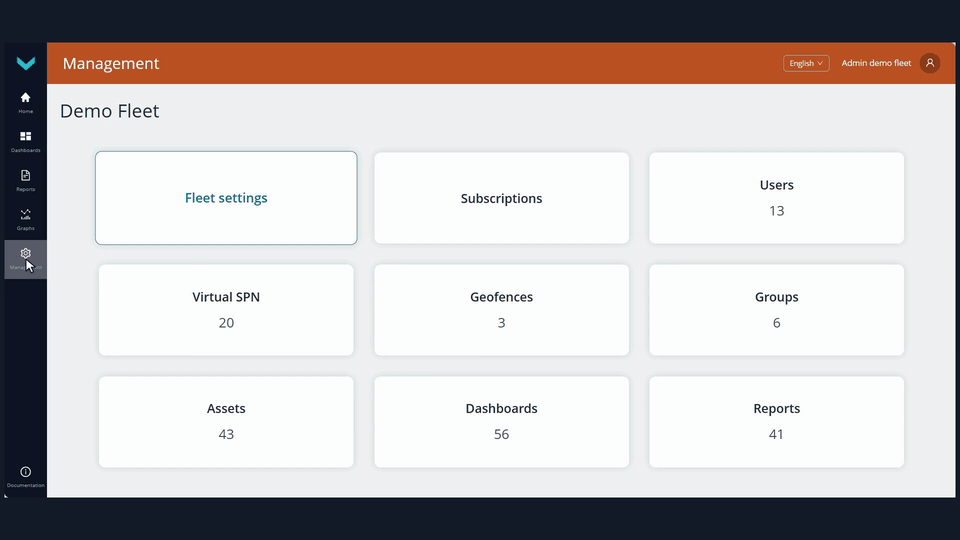

1. Open Management, the Assets tile, and the Asset you need.
2. On the Parameters tab, click the pencil icon of the Parameter.
3. In the Limit value field, click the plus icon to split the range into segments.
4. Set a color and a boundary for each segment.
5. Click Update.

▶ Watch in the video from 2:55

Learn more: Guide 5.5.2. Editing an Asset

Report an inaccuracy
